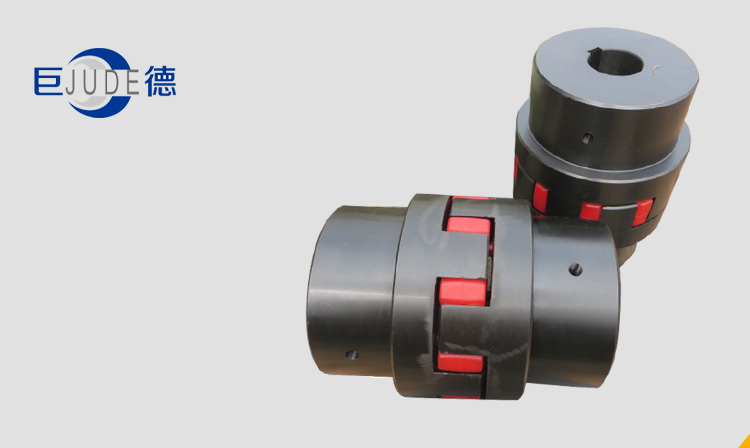

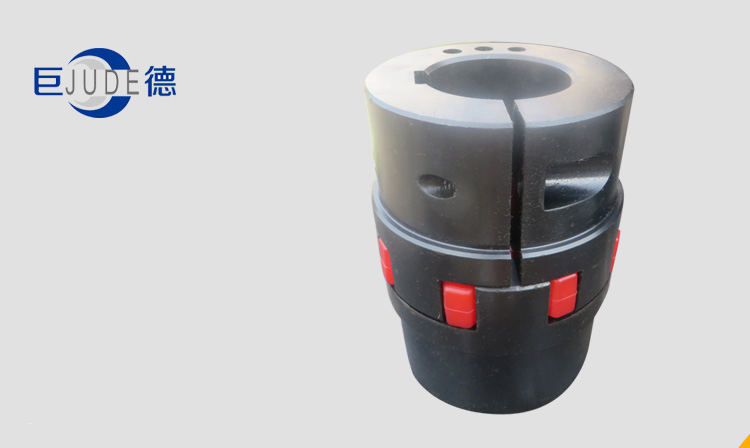

XL Flexible Jaw Coupling

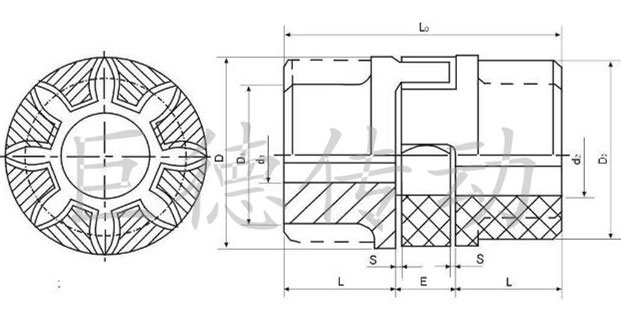

The Curved Jaw Design

■Three piece design that is easy to assemble

■The curved jaw design incorporates both radial and axial curvature(crowning)to the elastomer(spider)

■Hubs are offered in sintered iron,steel,aluminum,cast iron and nodular iron materials

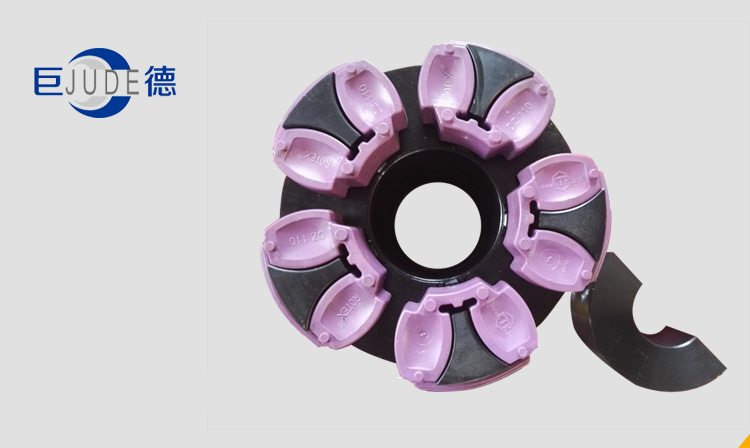

■Three different urethane elastomers available

■No metal to metal contact and no lubrication required

■Fail safe design due to the jaw in compression design(continues to function after the elastomer fails)

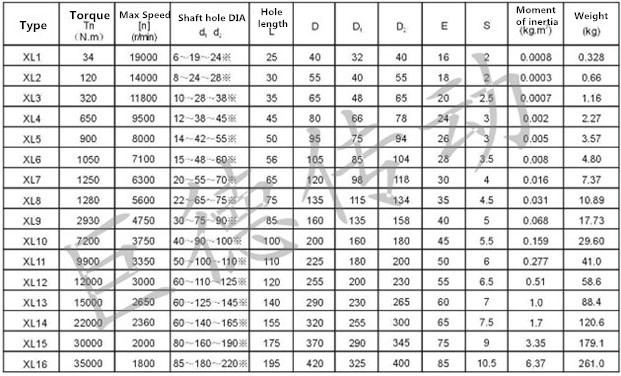

■The XL series covers a torque range of 34 to 35,000 N.m
