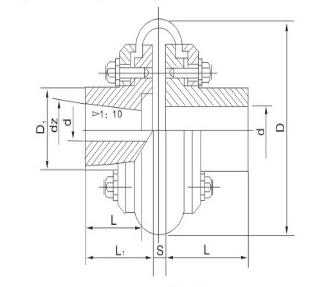

LLA Tyre Resilient Coupling

Design feature-LLA Tyre Resilient Coupling

1.The couplings are highly elastic,backlash-free,absorb shocks and dampen vibrations.

2.Inherent Overload Protection and high misalignment capacity.

3.Choice of tyres-standard,Neoprene or Fire Resistant Anti-static(FRAS)

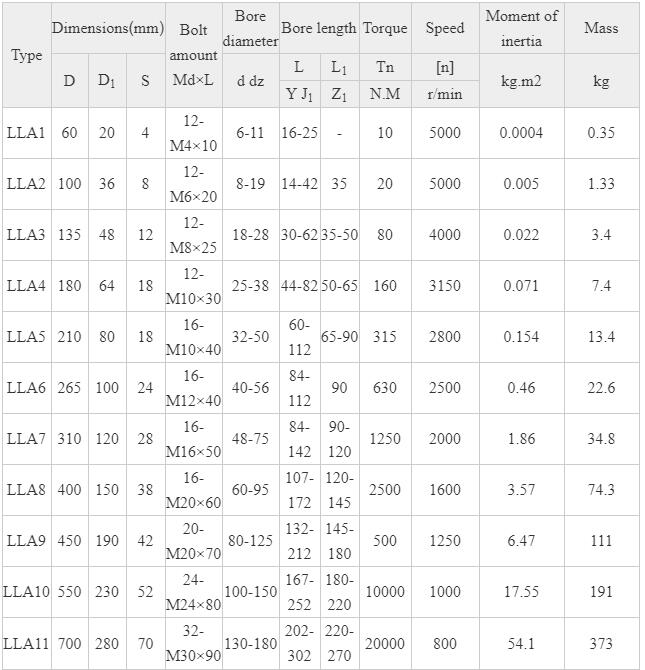

4.Size range from LLA1 to LLA11(11sizes)Minimum Torque size 10Nm to maximum Torque 20000Nm.Bore Diameter sizes from 6mm to 180mm.

5.Spacer tyre couplings for DBSE of 80 mm,100 mm,140 mm&180 mm

6.Available as through bore or with taper lock bushes

LLA tire rubber shaft coupling advantage:

JUDE LLA tyre coupling uses natural compounds makes it suitable for use in most outdoor conditions.

Handle combinations of parallel 1%of outside diameter,angular within 2%and axial end float within-10%and+3%of the width of the coupling displacement.

Installing and dismantling of coupling is quick and easy without need of special tools.Damping effect reduce absorb shock loads,Torsional vibrations and oscillations..Maintainence free,no need for lubrication and no dismantling required for inspections of components.
